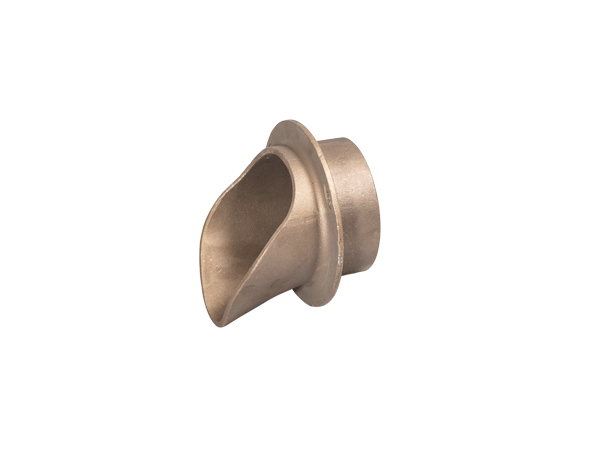

WJ102 - Downspout Nozzle

GM
WJ102

Gunmetal Parapet Downspout Nozzle, with 2" BSP dia. outlet

Additional Information:

Weight 6.3kg

Downspout outlet with threaded inlet, designed for installation on the outside face of a parapet wall to discharge water to lower levels

1
Starting at £186.15
