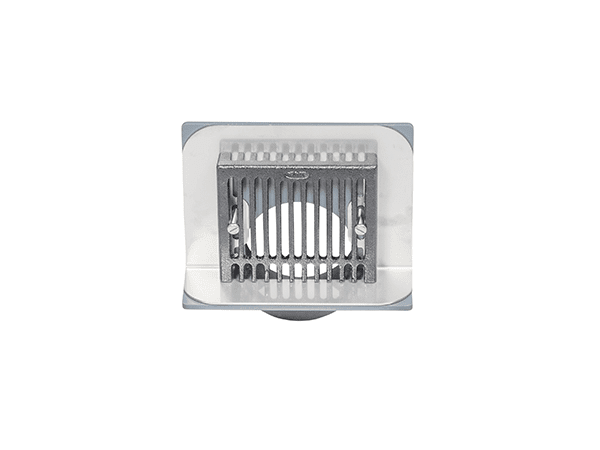

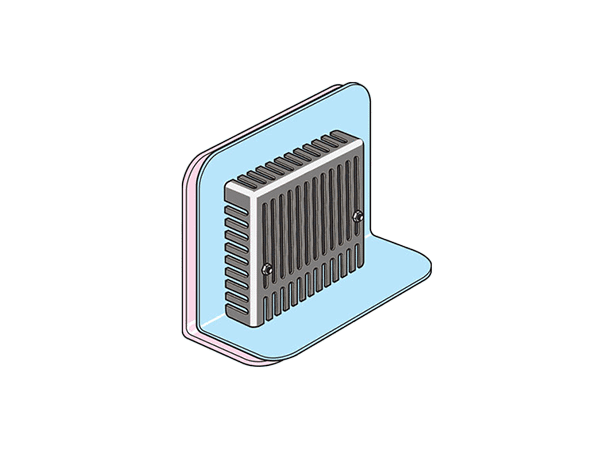

WF125 - Reversible Outlet

CI
WF125

150 x 127 Stainless Steel Parapet Reversible Outlet (For solvent/heat welded PVC membranes), with 4" BSP dia. Horizontal outlet

Additional Information:

Weight 1.9kg

Grating free area 115cm²

Body free area 78cm²

For solvent/heat welded PVC membranes

Parapet outlet with reversible body to provide horizontal or vertical threaded outlet.

1
£138.60
