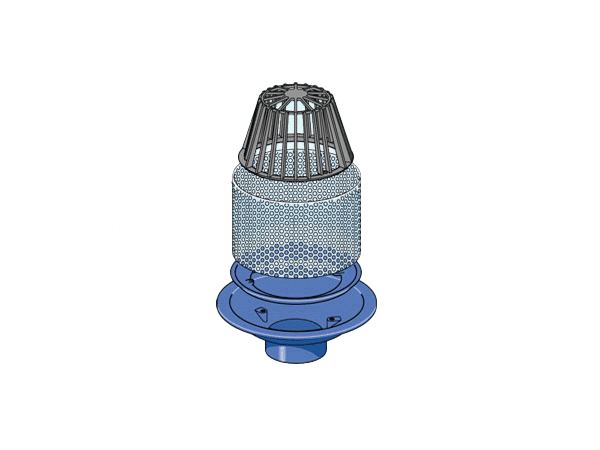

WB222G2 - Outlet with Circular Dome + Gravel Guard

K3
CI
PL
WB222G2

220 Dia. Stainless Steel 3400 series (Medium Sump) No Fines Screed / Inverted Roof Outlet with Circular Dome + Gravel Guard (200 high gravel guard), with 2" BSP dia. vertical outlet

Additional Information:

Weight 6.7kg

Body free area 19cm²

200 high gravel guard

1
£158.70
