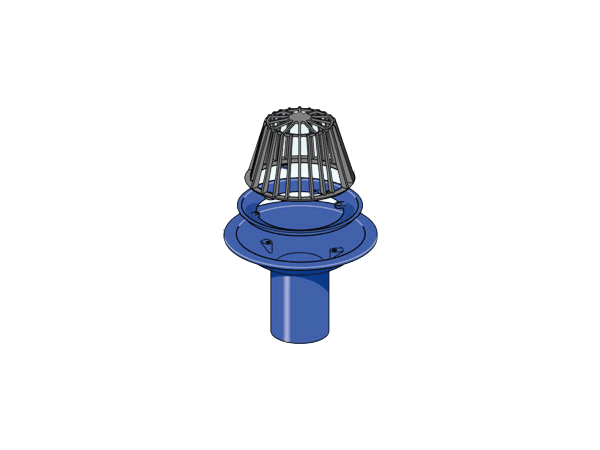

WB204 - Outlet with Circular Dome

K3
CI
PL
WB204

220 Dia. Cast Iron 3400 series (Medium Sump) Cold Roof Outlet with Circular Dome, with 111 dia. vertical outlet

Additional Information:

Weight 5.8kg

Grating free area 410cm²

Body free area 78cm²

1
Starting at £120.80
