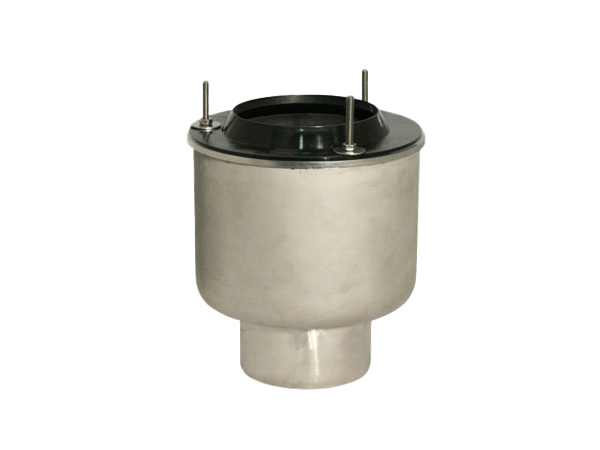

QB114LD - Non-Trapped Body

SS
QB114LD

Stainless Steel QB series Non-Trapped Body (Version for use with Wade stainless steel drainage channels. Deep Sump plus Optional Side Inlets), with 110.2 dia. vertical outlet

Additional Information:

Weight 2.3kg

Body free area 78cm²

Version for use with Wade stainless steel drainage channels. Deep Sump plus Optional Side Inlets

Body inlet is machined to accept a standard 114 diameter channel outlet spigot and is supplied with membrane clamping collar and a neoprene o-ring to give a watertight joint.

1
£181.50
