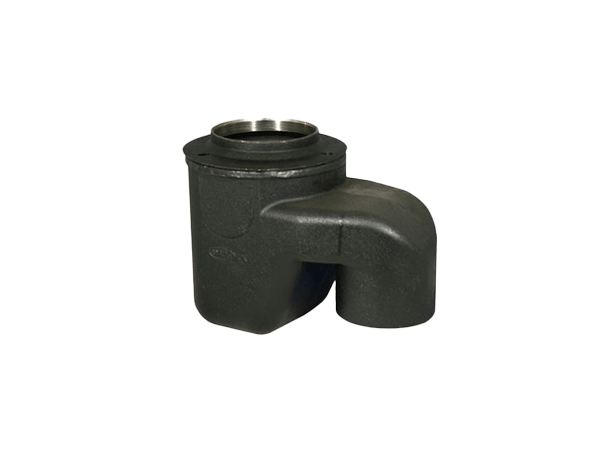

G604LD - 'S' Trapped Body

CI
G604LD

Cast Iron G series 'S' Trapped Body (Version for use with Wade stainless steel drainage channels. With Optional Side Inlets), with 112 dia. vertical outlet

Additional Information:

Weight 11kg

Body free area 78cm²

Version for use with Wade stainless steel drainage channels. With Optional Side Inlets

G series trapped gully with 50mm water seal. Body inlet is machined to accept a standard 114 diameter channel outlet spigot and is supplied with membrane clamping collar and a neoprene o-ring to give a watertight joint.
