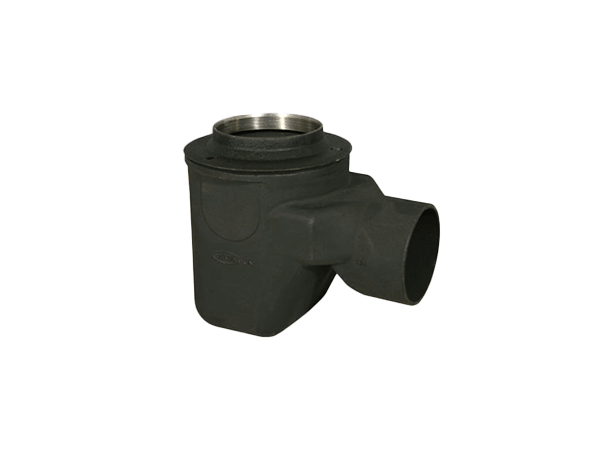

G304LD - 'P' Trapped Body

CI
G304LD

Cast Iron G series 'P' Trapped Body (Version for use with Wade stainless steel drainage channels. With Optional Side Inlets), with 112 dia. horizontal outlet

Additional Information:

Weight 9.6kg

Body free area 78cm²

Version for use with Wade stainless steel drainage channels. With Optional Side Inlets

G series trapped gully with 50mm water seal. Body inlet is machined to accept a standard 114 diameter channel outlet spigot and is supplied with membrane clamping collar and a neoprene o-ring to give a watertight joint.
