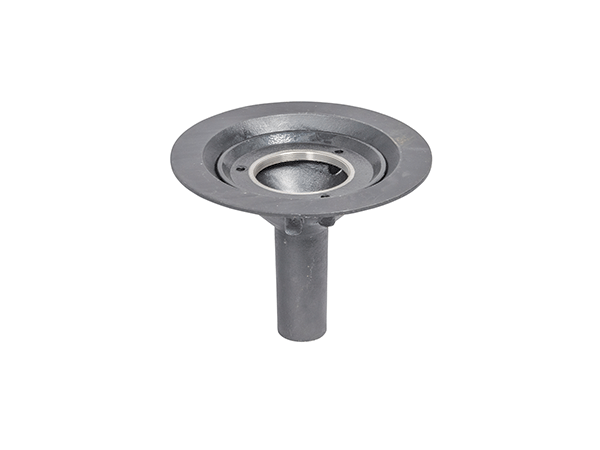

D1109LD - Non-Trapped Body for use with Bituminous Membrane

CI
D1109LD

Cast Iron D10 - D12 series Non-Trapped Body for use with Bituminous Membrane (Version for use with Wade stainless steel drainage channels), with 111 dia. vertical outlet

Additional Information:

Weight 4.6kg

Body free area 78cm²

Version for use with Wade stainless steel drainage channels

D1109 gullies have a wide flange to enable effective clamping of a bituminous damp-proof membrane. Membrane clamping collar is machined to accept a standard 114 diameter channel outlet spigot.

1
£0.00

Key Features

  • • Compatible with all Vari-Level Gratings and Rodding Eyes
  • • Membrane clamping collar allows for up to 30mm thickness of damp proof membrane
  • • Suitable for use with Asphalt.

Technical - Did you know?

  • • The membrane clamping collar must be ordered separately
  • • Use spec code C.D10 for standard 4” NPSM throat collar
D10 - D12 series
