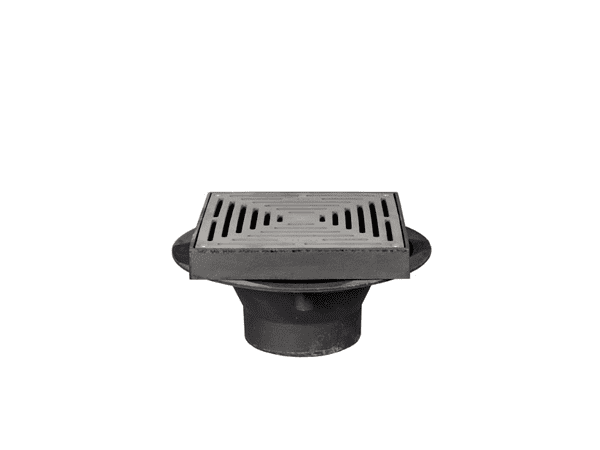

WB514 - Outlet with Square Flat Grating

M125
DI
WB514

320 Square Cast Iron 3100 series (Deep Sump) Cold Roof Outlet with Square Flat Grating, for use with asphalt / composition finish, with 4" BSP dia. vertical outlet

Additional Information:

Weight 26.4kg

Grating free area 295cm²

Body free area 78cm²

1
£211.50
