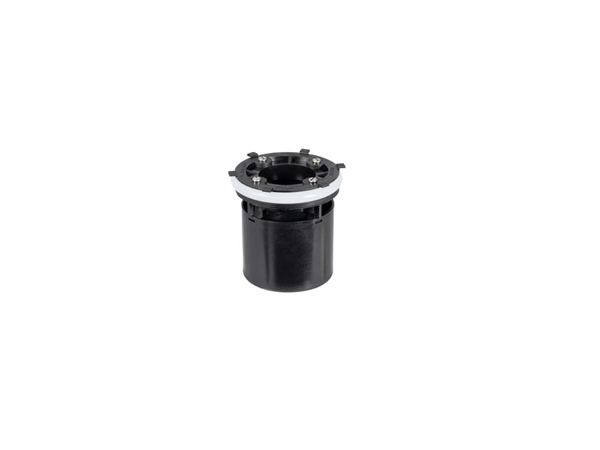

U1404 - Removable Bottle Trap

PL
U1404

General Purpose Removable Bottle Trap (50mm trap seal depth)

Additional Information:

Weight 0.2kg

50mm trap seal depth

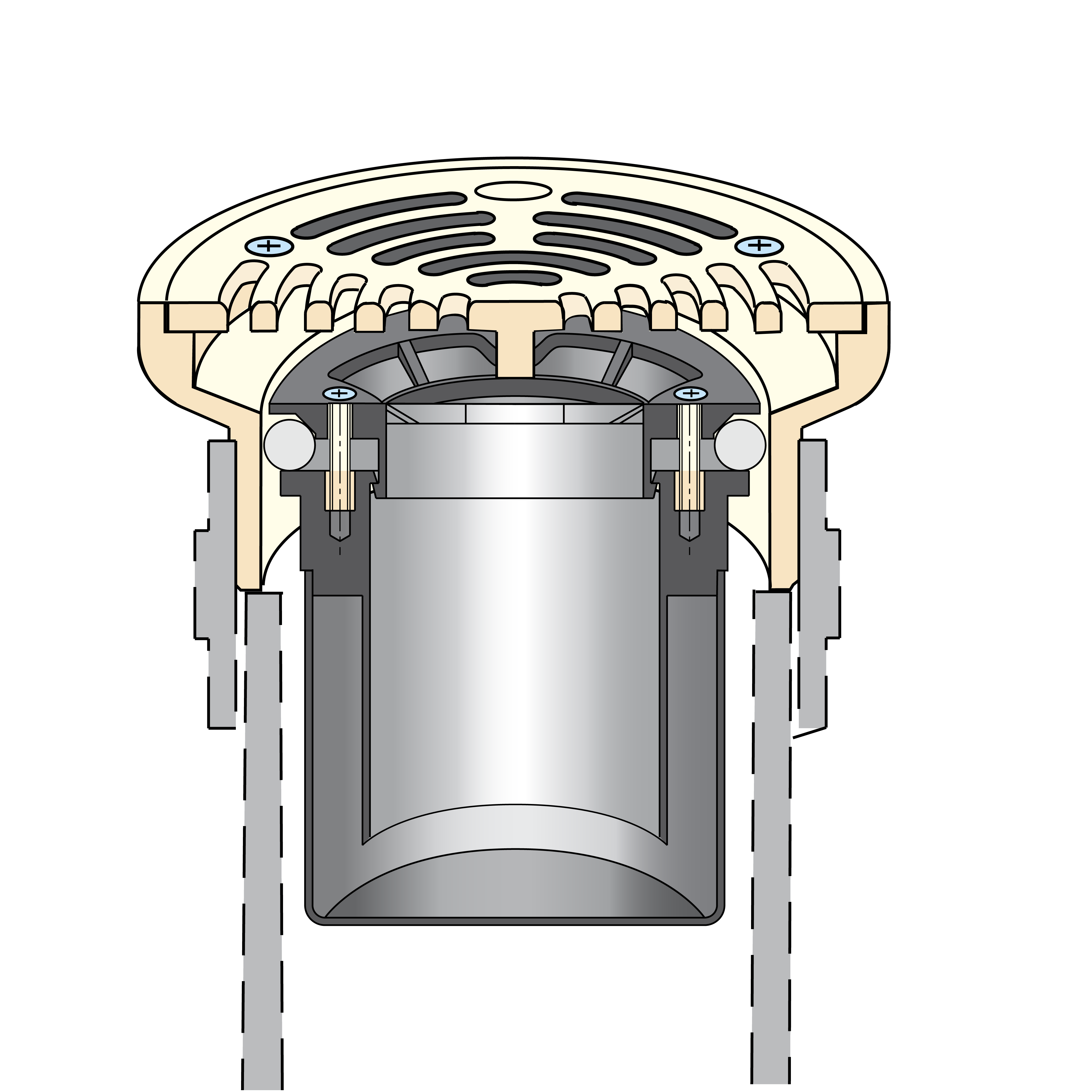

To fit inside a grating/funnel/access cover or body with 4" throat/outlet. Max flow rate of 1 l/s. NOTE: Frequent cleaning will be necessary in applications where very high amounts of hair and other waste material are present.

1
£60.29
