L3802 - Grating

K3
SS
L3802

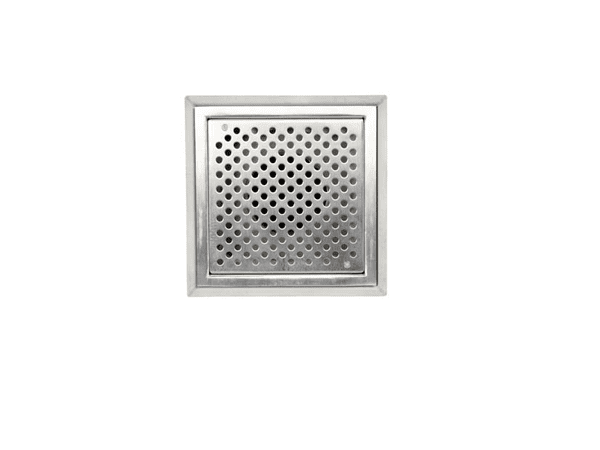

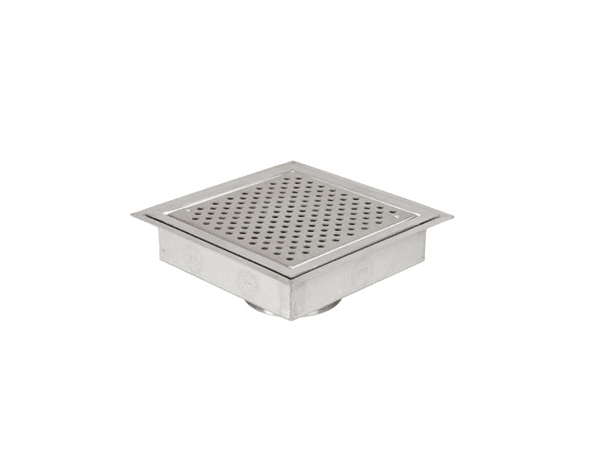

250 Square Stainless Steel Vari-Level Grating (Smooth Perforated), for use with flexible sheet floor covering, such as vinyl, with 4" NPSM vertical outlet

Additional Information:

Weight 3.89kg

1
£207.70
