L3792 - Grating

L15
SS
L3792

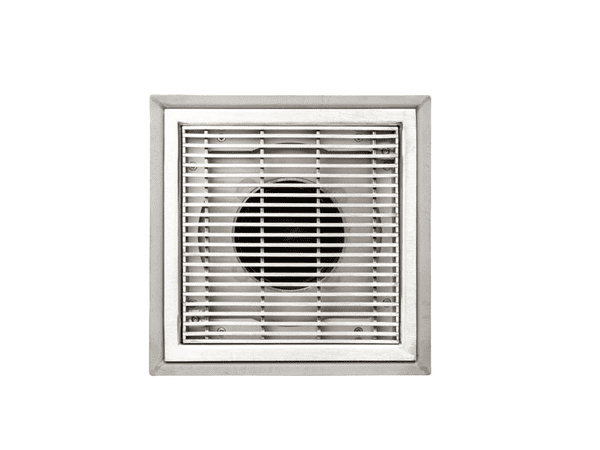

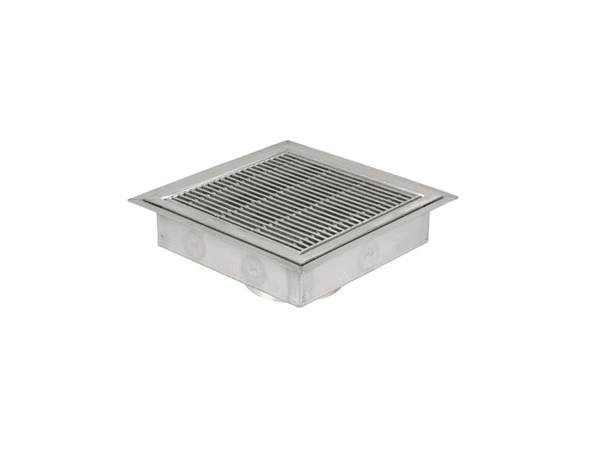

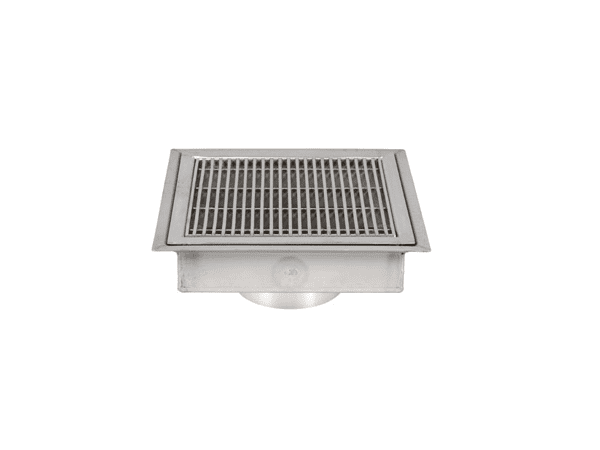

250 Square Stainless Steel Direct Connection Grating, (for use with flexible sheet floor covering, such as vinyl. Streamline heel-proof reverse wedge profile; grating secured with pin hex screws), with 110.2 dia. Vertical outlet

Additional Information:

Weight 3.8kg

Grating free area 216cm²

For use with flexible sheet floor covering, such as vinyl. Streamline heel-proof reverse wedge profile - grating secured with pin hex screws

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

1
£268.70
