L3702 - Grating

L15
SS
L3702

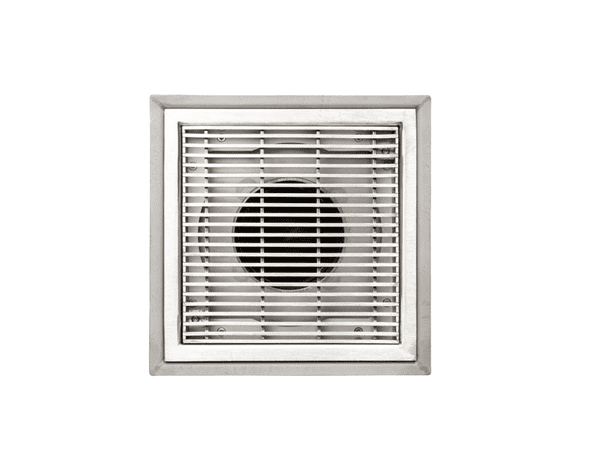

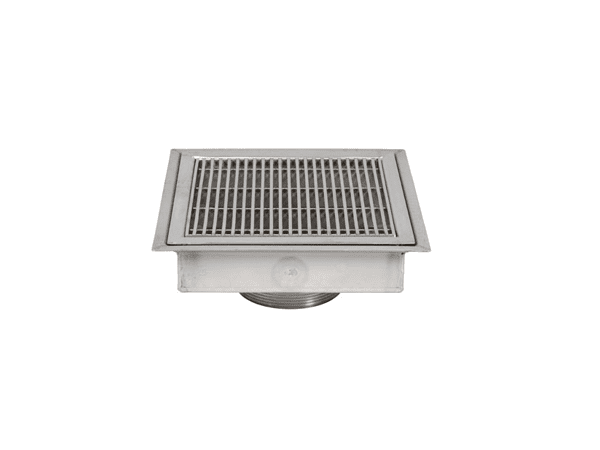

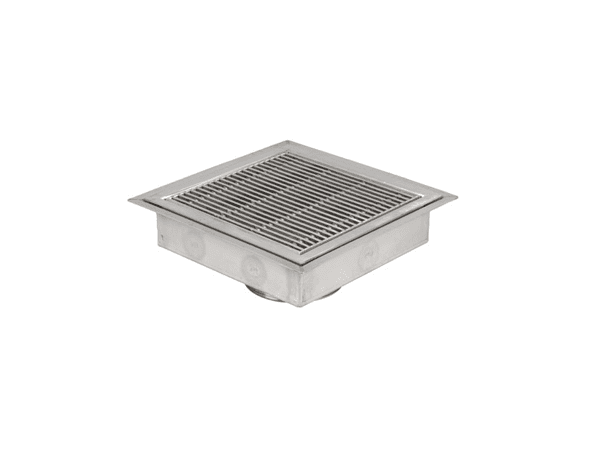

250 Square Stainless Steel Vari-Level Grating, (for use with flexible sheet floor covering - streamline heel-proof reverse wedge profile grating; grating secured with pin hex screws (pin-hex if Grade 316)), with 4" NPSM dia. Vertical outlet

Additional Information:

Weight 3.6kg

Grating free area 216cm²

For use with flexible sheet floor covering - streamline heel-proof reverse wedge profile grating - grating secured with pin hex screws

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

1
£268.70
