L3691 - Grating

L15
SS
L3691

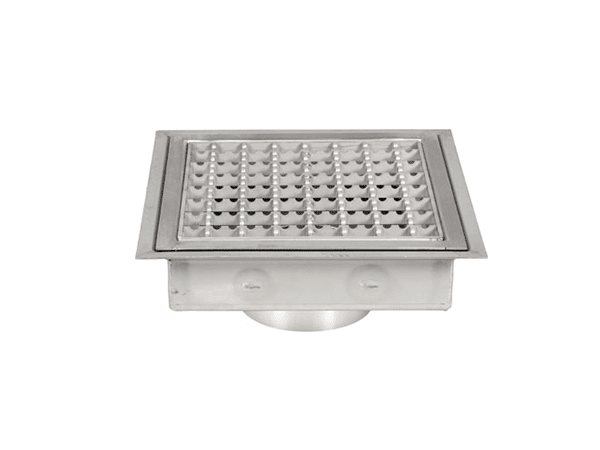

200 Square Stainless Steel Direct Connection Grating, (Anti-slip mesh (grating not secured), for use with flexible sheet floor covering, such as vinyl), with 110.2 dia. Vertical outlet

Additional Information:

Weight 2.8kg

Grating free area 150cm²

Anti-slip mesh (grating not secured), for use with flexible sheet floor covering, such as vinyl

For use in high specification applications including food preparation and areas where high corrosion resistance is a requirement.

1
£179.20
