K3497 - Funnel

Non-Load Bearing
SS
K3497

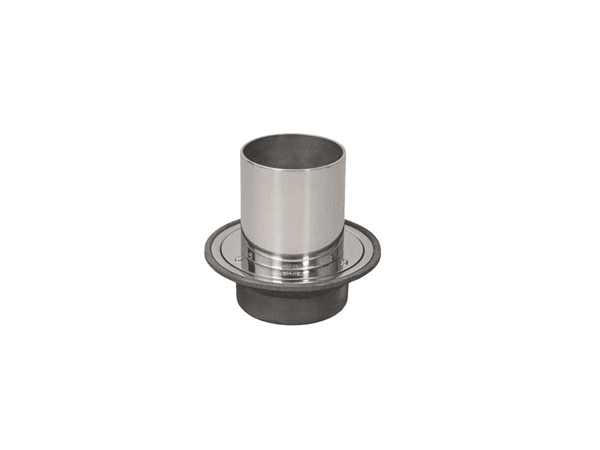

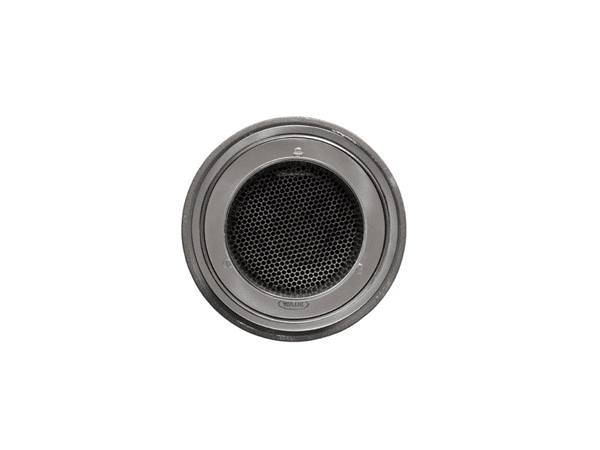

160 Dia. Stainless Steel Direct Connection Funnel, for use with flexible sheet floor covering (eg. vinyl) (Condensate funnel with vermin guard), with 110.2 dia. Vertical outlet

Additional Information:

Weight 2.3kg

Grating free area 35cm²

Condensate funnel with vermin guard, for use with flexible sheet floor covering, such as vinyl

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

1
£273.70
