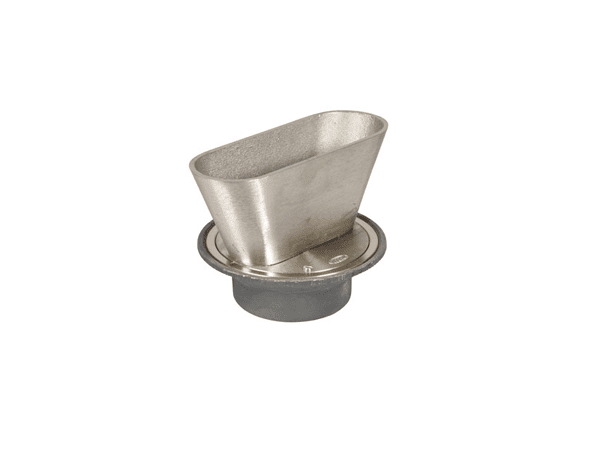

K3492 - Funnel

NB
K3492

160 Dia. Nickel Bronze Direct Connection Funnel, for use with flexible sheet floor covering (eg. vinyl) (with peripheral cover + vermin guard.), with 110.2 dia. Vertical outlet

Additional Information:

Weight 4.2kg

Grating free area 21cm²

For use with sheet floor covering - with peripheral cover + vermin guard.

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.
