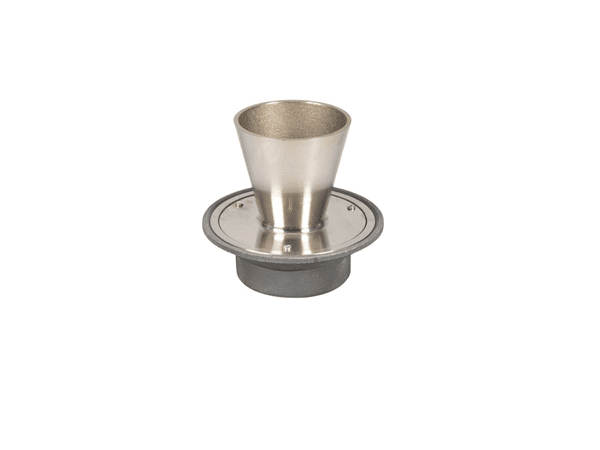

K3491 - Funnel

NB
K3491

160 Dia. Nickel Bronze Direct Connection Funnel, for use with flexible sheet floor covering (eg. vinyl) (with peripheral cover + vermin guard), with 110.2 dia. Vertical outlet

Additional Information:

Weight 3.3kg

Grating free area 12cm²

For use with sheet floor covering - with peripheral cover + vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

1
£179.10
