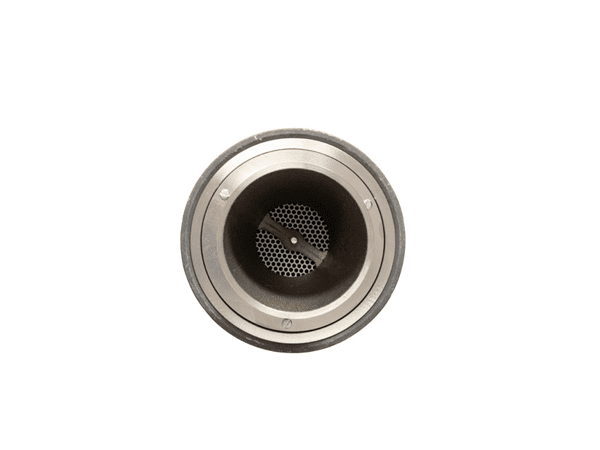

K3401 - Funnel

NB
K3401

160 Dia. Nickel Bronze Vari-Level Funnel, for use with flexible sheet floor covering (eg. vinyl) (To take single indirect waste pipe; with peripheral cover + vermin guard), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 3.3kg

Grating free area 12cm²

To take single indirect waste pipe - with peripheral cover + vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

60 - Frame Height
