K2392 - Grating

L15
NB
K2392

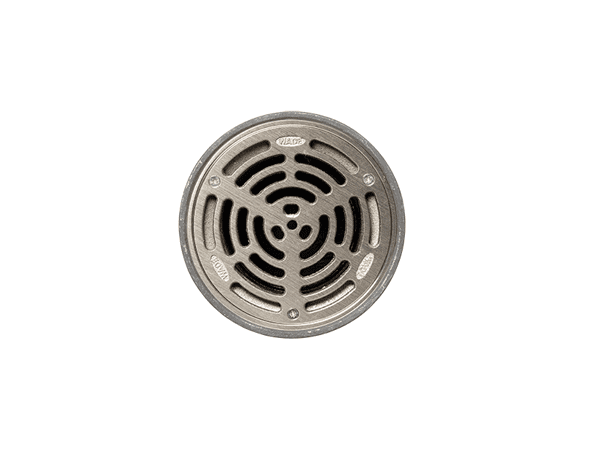

160 Dia. Nickel Bronze Direct Connection Grating, for use with flexible sheet floor covering (eg. vinyl) (Open Grating), with 110.2 dia. vertical outlet

Additional Information:

Weight 2kg

Grating free area 48cm²

Open Grating

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

1
£112.40
