K2307 - Grating

L15
SS
K2307

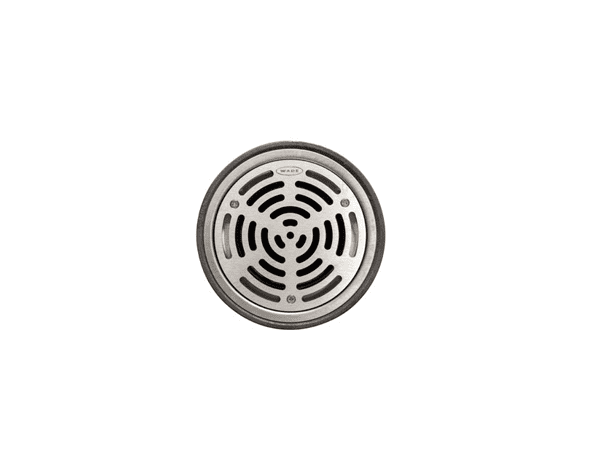

160 Dia. Stainless Steel Vari-Level Grating, for use with flexible sheet floor covering (eg. vinyl) (Open Grating), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 2kg

Grating free area 48cm²

Open Grating

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

60 - Overall Height

1
£181.30
