K2303 - Grating

L15
NB
K2303

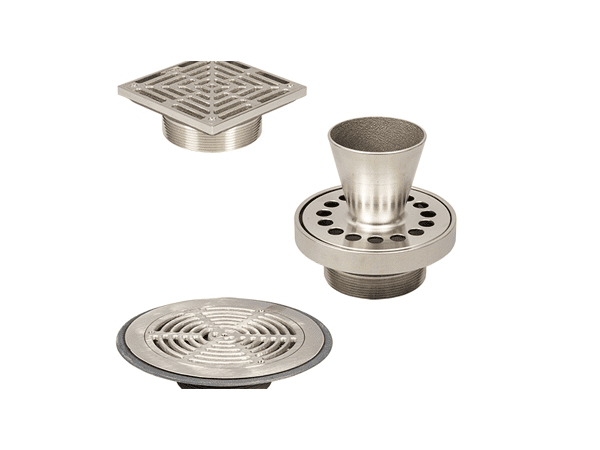

230 Dia. Nickel Bronze Vari-Level Grating, for use with flexible sheet floor covering (eg. vinyl) (Open Grating), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 4.1kg

Grating free area 106cm²

Open Grating

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

58 - Overall Height

1
£235.40
